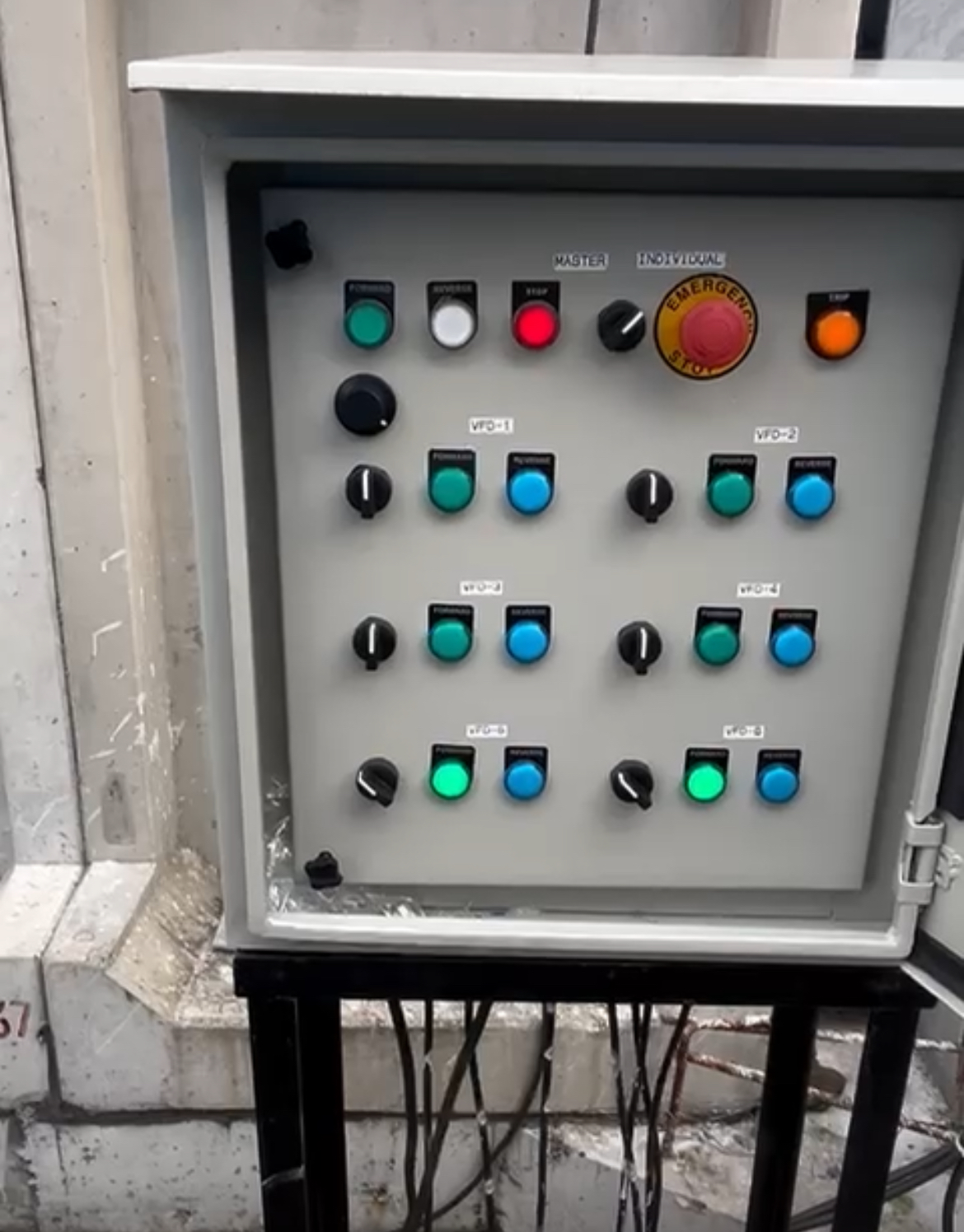

The VFD Synchronisation Panel is used to control multiple motors driven by VFDs so they operate in coordinated speed and load sharing for smooth industrial processes.
Here are the main functions of a VFD Synchronisation Panel:
⸻
1️⃣ Speed Synchronisation
Ensures that all motors connected to different VFDs run at the same speed.
This prevents belt slip, product damage, or mechanical stress in machines.
Example: Multi-motor conveyor systems.
⸻
2️⃣ Load Sharing
Distributes the mechanical load equally among multiple motors so that one motor does not get overloaded.
Benefits:
• Prevents motor overheating
• Increases motor life
⸻
3️⃣ Master–Slave Control
One VFD acts as the master drive and others follow its reference signal.
The panel manages communication between drives using:
• RS-485
• Modbus
• CAN communication
⸻
4️⃣ Process Control
Maintains constant process speed and accuracy in industries such as:
• Textile machines
• Printing machines
• Rolling mills
• Extrusion lines
